Bionic Trumpet | |
Article from Polyphony, February 1978 |

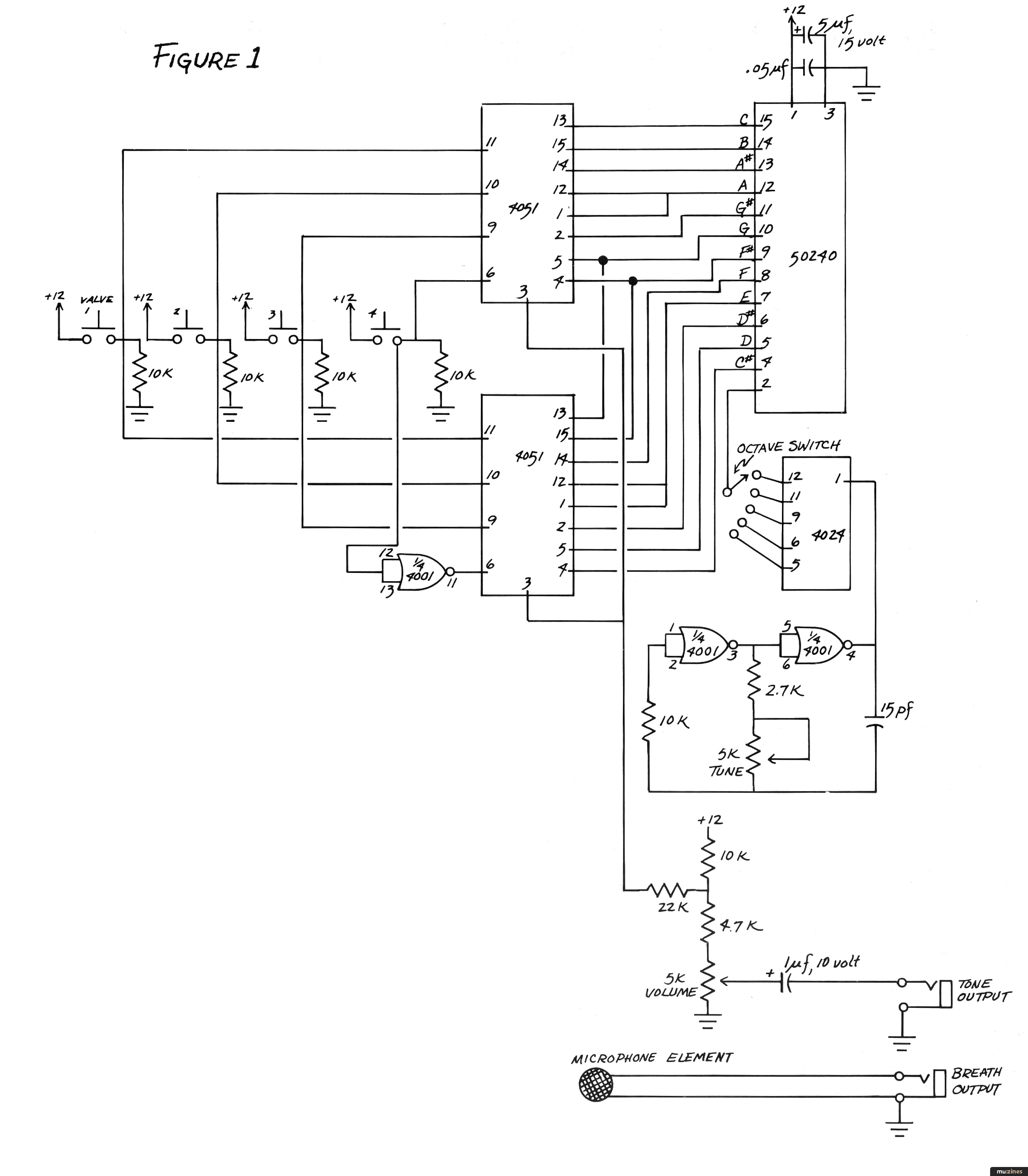

The tones themselves are produced by a 50240 top octave generator chip in about the same way as the OZ. A clock formed by two NOR gates is divided down by a 4024, then fed into the TOG to make nice, clean square waves in an equally — tempered relationship. The switch on the 4024 produces octaves — five, in this case. Then as mentioned above, the output tones are fed into the input lines of the 4051's. Notice the G and F# tones go to two inputs each — that's to provide alternate fingerings (see chart below).

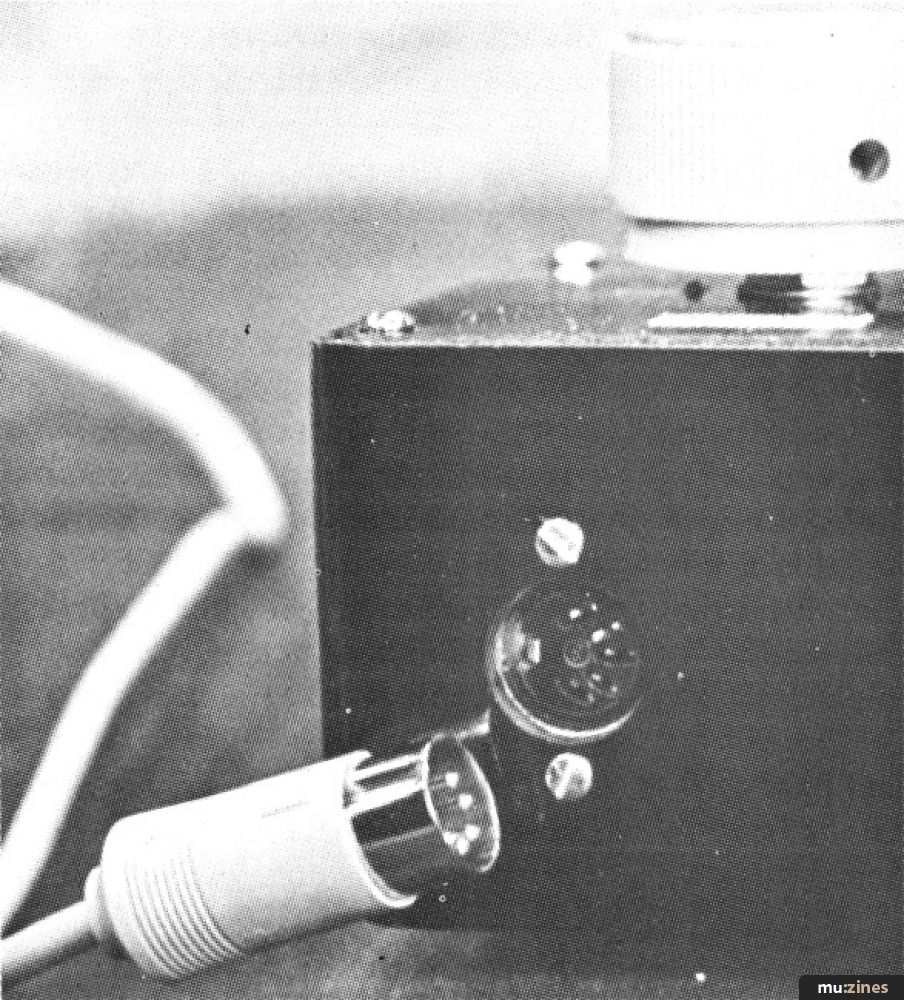

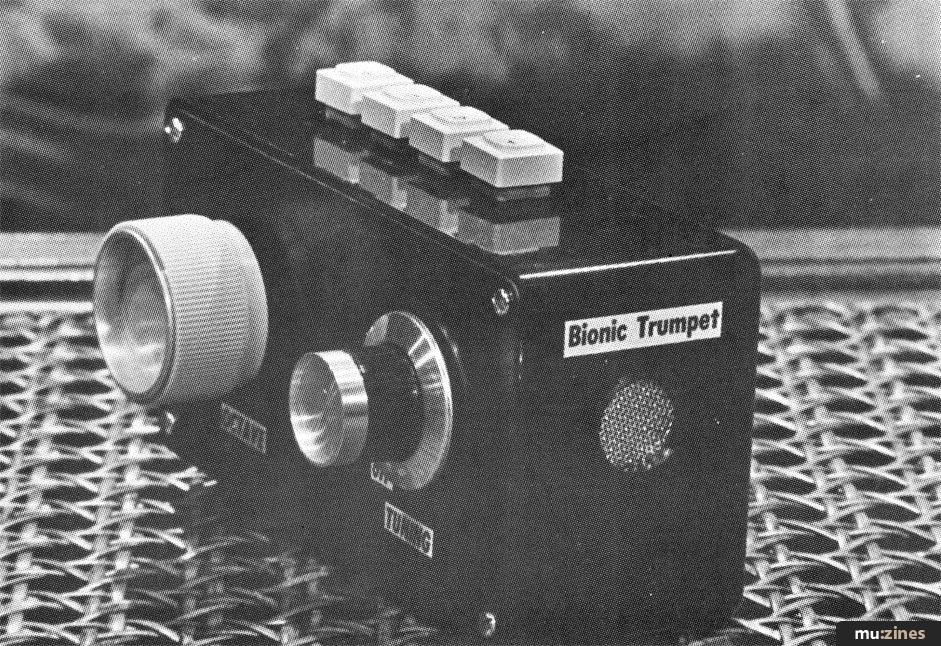

Construction is completely up to the individual: I used a wiring pencil (handy little gadget — I use it more than any other prototyping method now), but you may prefer perfboard or circuit board construction. For a case, I used a medium-sized bakelite box — one that "felt good" in my hand (I got some strange looks from the store manager, too), then installed the circuit board, the battery pack (8 penlight batteries — 12 VDC) and a 5-pin DIN jack (see photo). I mounted the valves on "top" — actually one of the long sides — and the tuning control and octave switch on the left side of the body. The on-off switch is on the tuning control. The DIN jack is underneath, out of the way.
For breath control, as in the saxophone, I used a cheapie microphone element — actually, I tore up a microphone from a cassette recorder and used the top part of the mic body as a bushing to hold the element in place on the trumpet, then used epoxy putty to fasten the whole thing in place and ran a short piece of co-ax from the mic to the DIN jack, along with the output from the circuit (both pins 3).
For the valves, I heartily recommend calculator switches, because they have a good feel — much better than dime store pushbutton switches. To mount them, I drilled two small holes for each switch, one hole per switch lead. Then I soldered small wires to each lead and stuck the wires into the appropriate holes, pulled the switches down flush to the top of the case, bent the wires underneath out (like cinching a resistor on a circuit board), and mashed a glob of epoxy on each wire near the hole to make sure the keys stayed in place. The switches may be hard to mount, but I assure you it is worth it in the long run.
To use the trumpet, I made up a cable that has a DIN plug on one end and two mini-phone plugs on the other, one connected to the circuit, the other to the microphone.

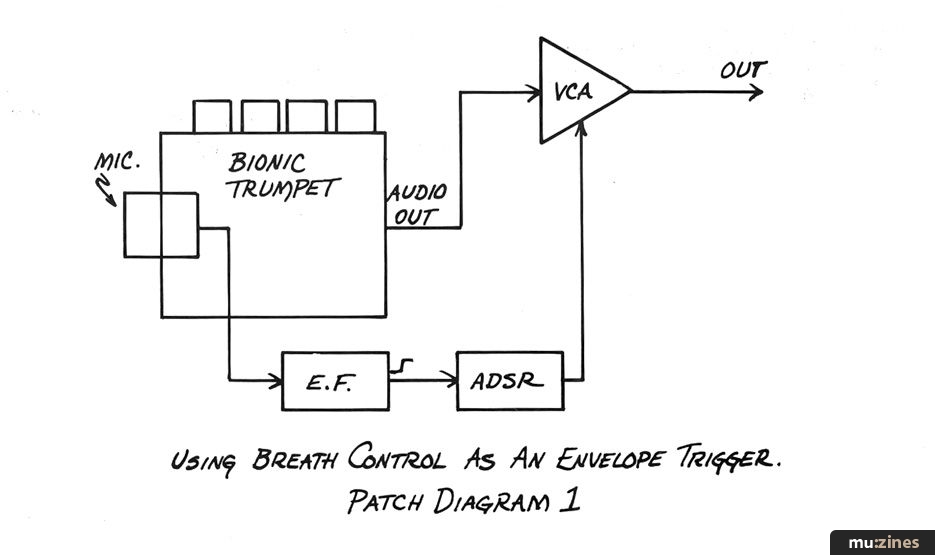

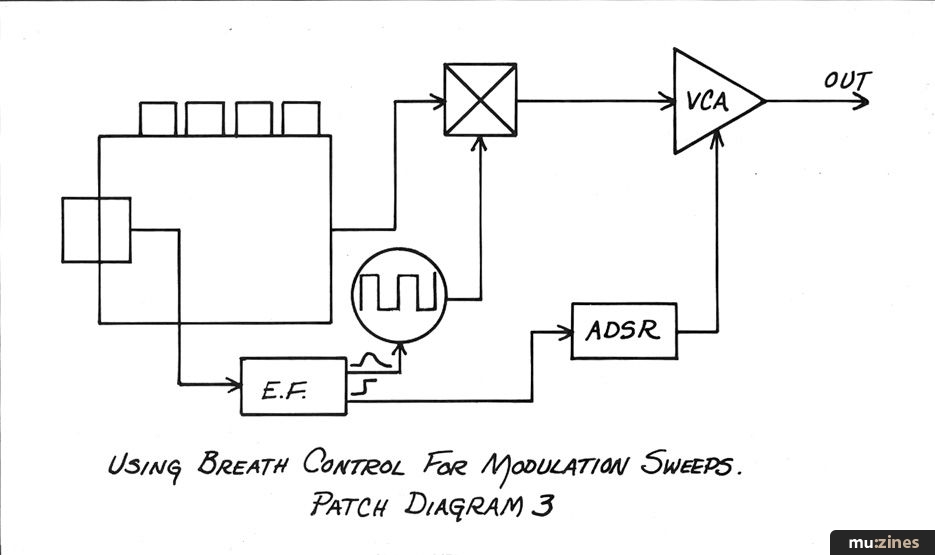

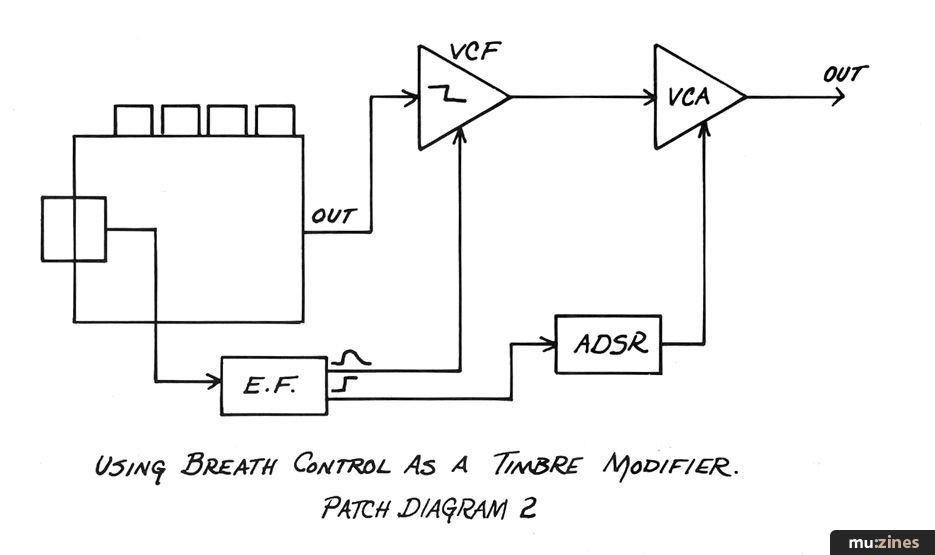

Plug the circuit audio cable into a VGA, and the mic plug into an envelope follower/trigger. Use that trigger to control an envelope generator, which in turn controls the VGA. See patch diagram 1. Set up the envelope you want, turn on the trumpet, adjust the sensitivity on the envelope follower, and start practicing. Much more complex patches can be realised, like those in diagrams 2 and 3. Dynamic breath control is possible with the controller — let your imagination go wild!
If you have modified the Gnome to adapt to the OZ, you can also interface it with the trumpet, and use the Gnome's VCA, VCF and envelope generators to process the trumpet's audio.
It may take a bit of getting used to the fourth valve if you're already a valve player; some use the left hand to work the fourth valve as well as the octave switch. Whatever feels best is fine. You may even want to mount the fourth valve somewhere else on the horn. A pitchbend plate can be fashioned and mounted on the horn if desired, in fact, there's an awful lot of modifications that can be made, and you'll probably come up with some that will make playing easier for you. If so, drop me a line care of PAIA, and if there's enough interest, we'll print them up in a future Polyphony article. I'd also like other opinions on the subject of alternate controllers for synthesizers. Meanwhile, I'll be working on a clarinet controller...
NOTE: | VALVES (1,2,3,4): |
C# | 1111 |
D | 1011 |
D# | 0111 |
E | 1101 |
F | 1001 |
F# | 0101 |
G | 0001 |
G# | 0110 |
A | 1100 |
A# | 1000 |
B | 0100 |
C | 0000 |
Note that a 1 indicates that a valve is to be depressed, while a 0 indicates that the valve is still up.
DATA: | NOTE SELECTED: |
000 | C |
001 | A# |
010 | B |
011 | A |
100 | A |
101 | G |
110 | G# |
111 | F# |
This chart will be helpful for finding alternate fingerings, or for troubleshooting purposes. The binary code given corresponds to the data fed from the valves (1, 2, 3) to the 4051 addressing inputs (A0, A1, and A2) which are found at IC pins 11, 10, and 9 respectively.
Figure IC1 Address Encoding
DATA: | NOTE SELECTED: |
000 | G |
001 | F |
010 | F# |
011 | E |
100 | E |
101 | D |
110 | D# |
111 | C# |
Valve 4 must be depressed to disable IC1 and enable IC2. Otherwise, the data source and addressing pins are the same for IC2 as for IC1.
Figure IC2 Address Encoding
