Rane PE15 Parametric Equaliser

Article from Home & Studio Recording, November 1985

The Rane PE15 Parametric Equaliser.


Rane check by Paul White. If this unit doesn't solve youn EQ problems — you've got problems!


This compact rack package from Rane is essentially five parametric equalisers connected in cascade, each one tailored to cover a specific portion of the audio band. Unlike the more common sweep equalisers, the bandwidth of each filter section is independently variable and may be set as narrow as 1/30 of an octave, with the exception of the lowest band which has a minimum width of 1/7 of an octave. Each filter section may be switched in or out of the circuit as required and an overload LED indicates if clipping is imminent anywhere along the signal path.

The equaliser may be used to cut or boost any frequencies within its range. The maximum amount of control available is 15dB of boost or 20dB of cut per section. Bands one and five incorporate a pull switch built into the bandwidth control and this changes the filter from bandpass mode to give a shelving response.



"One way to consider this unit is as a 5-band graphic equaliser where the frequency and bandwidth of each section is under user control..."

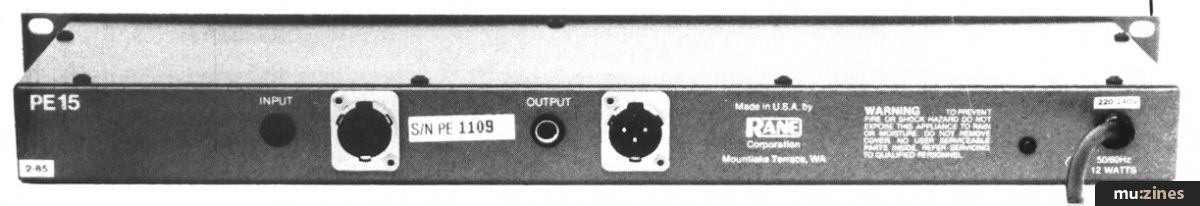

In order to be fully compatible with professional installations, the Rane PE15 features a balanced input with a choice of balanced or unbalanced output, a choice of jack or XLR connector being available in both cases.

A master level control and bypass switch completes the compliment of controls and a green LED cunningly indicates the presence of any signal in excess of -20dBm.


Conclusions



There is no doubt that this is a well designed and extremely flexible equaliser but like all parametrics, it can take a long time to set up properly. The fact that you can switch equaliser sections out of circuit is the saving grace in this instance. If all the equalisers were constantly in the signal path, you wouldn't stand a cat in hell's chance of coming up with the optimum settings.

One way to consider this unit is as a 5-band graphic equaliser where the frequency and bandwidth of each section is under user control, and indeed, this type of device is occasionally referred to as a paragraphic equaliser - though it really should have sliders to qualify for this title.



"There is no doubt that this is a well designed and extremely flexible equaliser but like all parametrics, it can take a long time to set up properly."


The signal present LED is a good idea, especially if you're in the habit of losing signals somewhere in your patchbay and not knowing where they've gone, and the option of switching the end filters to shelving operation is a sensible inclusion. In a sound reinforcement situation, this device should be a great aid in keeping feedback at bay and in the studio, its corrective and creative possibilities extend far beyond those of the equaliser section of your mixer or even a graphic.

Like any equaliser, the Rane should be used sparingly but it really is capable of doing anything that you might reasonably require of it.

The Rane PE15 Parametric Equaliser retails at £342.70and further information is available from: Music Labs, (Contact Details).

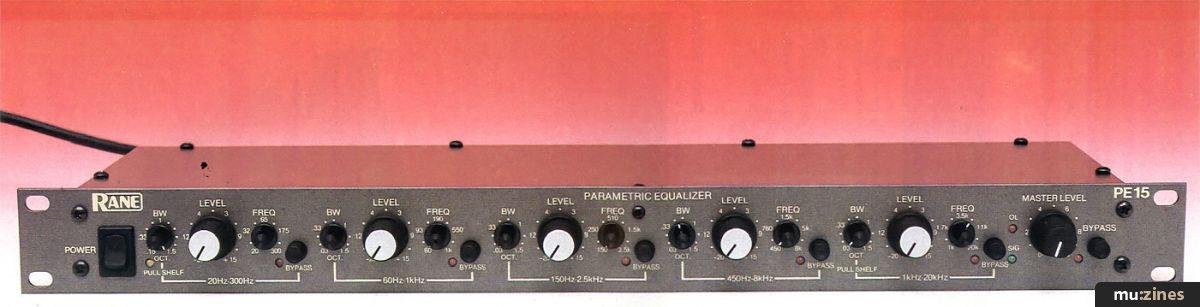

Rane PE15 Parametric Equaliser

Bypass switch - bypasses all the equaliser sections for rapid A/B comparison checks.

Master Level - matches the output level of the equaliser bank to the next piece of equipment in the chain. The adjacent green LED indicates that a signal is present and the red LED warns of an impending overload problem anywhere along the signal path.

Equaliser section 1 kHz to 20kHz - features a Level control for cut or boost and a continuously variable Frequency control. Boost may be set from -20dB to +15dB and the bandwidth is variable from 0.03 octaves to 1.5 octaves. By pulling out the Bandwidth control the filter response is changed from bandpass to shelving. All EQ sections have their own Bypass switch and red status LED.

Equaliser section 450Hz to 8 kHz - features a Level control for cut or boost and a continuously variable Frequency control. Boost may be set from -20dB to +15 dB and the bandwidth is variable from 0.03 octaves to 1.5 octaves.

Equaliser section 150Hz to 2.5kHz - likewise features a Level control and a continuously variable Frequency control and again boost can be set from -20dB to +15dB. The bandwidth is variable from 0.03 octaves to 1.5 octaves.

Equaliser section 60Hz to 1 kHz - this features identical controls to the previous three sections. As usual, boost may be set from -20dB to +15dB and the bandwidth is variable from 0.03 octaves to 1.5 octaves.

Equaliser section 20Hz to 300kHz - has identical controls to the other EQ sections, but here boost may be set from -20dB to +15dB and the bandwidth is variable from 0.15 octaves to 1.5 octaves. By pulling out the Bandwidth control the filter response is changed from bandpass to shelving.

Power Switch - Answers on a stamped addressed postcard to...
