Matamp RCGT 100 Amp



TEST ON: Matamp RCGT 100 Amp
DATE November 1975
PRICE £129.60 Ex VAT

INTRODUCTION



Mat Mathias is a man who has been designing and building amplifiers for the entertainment industry since the early 'fifties. Apart from the products of his own company, which carry the matamp trade work, he has produced designs for other manufacturers, including those for some of the early Orange equipment. The addition of some fully solid-state systems to the Matamp range extends the long experience gained on valve amplifiers by another step. However, the subject of this test report is one of the "all valve" designs.

The RCGT 100 is a 100 watt general purpose valve top which is suitable for guitar, bass, organ or vocals. The full output power can be fed into 3¾ ohm, 7½ ohm, or 15 ohm speaker systems by selecting the correct top on the output transformer. There is no loss of power when 15 ohm speaker systems are used, as occurs with many transformer less amplifiers. Using 8 ohm speakers in place of 7½ or 4 ohm in place of 3¾ makes no significant difference.

There is also a 100 volt line output which is useful if very long speaker wires are required. However, a transformer must then be fitted in each speaker box.

As is common with many valve amplifiers, only one input channel is provided. This has a volume control, presence, treble and bass tone control, an additional switched six step base boost control and a four position switch labelled "drive". The "drive" switch gives a choice of normal signal or treble boost at either low or high level. The remaining facilities include two input sockets of different sensitives, mains switch and pilot light, echo input and output sockets, speaker impedance selector, mains voltage selector and two fuses.

The main transformer allows the system to be used on 110 and 118 volt A.C. as well as 220 and 240 volts A.C.

CONSTRUCTION



There is nothing exciting or revolutionary about the style of construction, apart from having chrome plated handles on the inside of the chassis and on the front panel! The quality of construction is very good and well above normal standard. All the components are of the very best quality and of ample rating for their jobs; including the expensive items like the transformers.

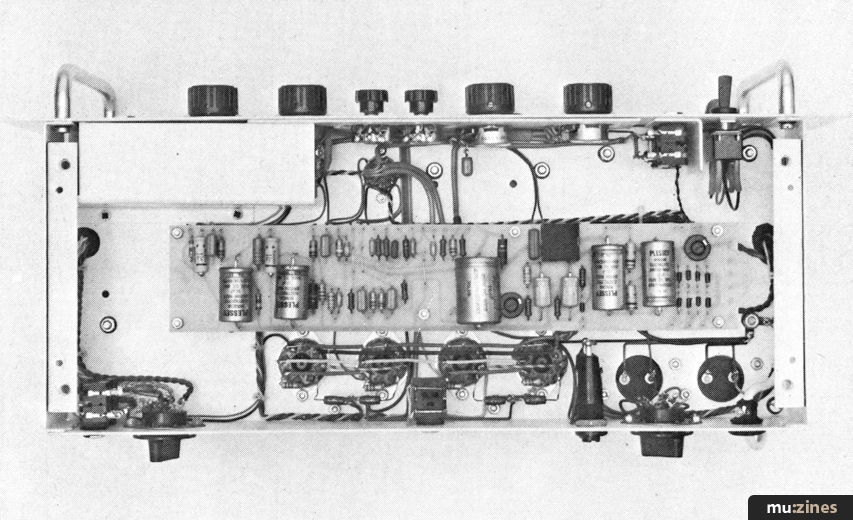

One medium size glass fibre printed circuit board carries the majority of small items and everything is well secured so as to withstand vibration.

Access for servicing is very easy. Valves may be changed by removing four screws and lifting the back cover off or the whole chassis can be taken out of the box by removing four screws in the base. Almost any component could be replaced without having to first dismantle other bits.

PERFORMANCE



  RESULT   TEST CONDITION COMMENTS
Power Output 126W Into 15 ohms. RMS power at 10%
132W Into 7.5 ohms. total harmonic
117W Into 3.75 ohms. distortion
112W Into 15 ohms Power at
114W Into 7.5 ohms. onset of
110W Into 3.75 ohms. clipping
Distortion 5.4% @ 100W into 7.5 Total harmonic Distortion levels are
0.26% @ 10W into 7.5 distortion high but reasonable
0.3% @ 1W into 7.5 measured at 1 KHz. for a valve amplifier.
Sensitivity for 100w O.P. 13 mV. i.p. 1 Tone controls set for best Quite high sensitivity
5.6 mV. i.p. 2 square wave response and which is more than
"drive " in 3rd position. Measured enough for guitars
at 1 KHz. and microphones.
Tone Controls 28 dB. Bass Switch range at 50Hz. Good
25.5 dB. Bass range at 50Hz. Good
28.1 dB. Treble range at 10KHz. Good
6.7 dB. Presence range at 1.7KHz. Should be better
Noise referred to i.p -84 dBm. i.p 1 Reasonable for a valve amplifier.
-91.3 dBm. i.p 2 The "noise" is mostly mains hum.
Echo send +1.8 dBm.
Output Protection OK Short circuit Did not blow fuse on
OK Open circuit short circuit test but
the valve anodes became red hot.
Capactive load test OK 2 uF and 8 ohm. load

CONCLUSION



Matamp have reason to be proud of the quality of the RCGT 100. The construction is beautiful and the performance is good for a valve amplifier. I would have liked to see more range on the presence control and less background mains hum, but even so, the achieved performance is not unreasonable.

The input sensitivity is higher than normal. This could be very useful if you have low output mics but otherwise has no significance.

In every other way the amplifier is very ordinary and unlikely to attract attention to itself. It is the sort of work horse which can be put into service and forgotten about; apart from an occasional change of valves.

The provision of socket for connecting an echo chamber or reverberation unit is obviously very worth while. However, putting plugs in these sockets does not interrupt the direct signal line. Consequently, one must be careful to choose an echo unit which will provide a "reverb only" output because the mixing with the main signal is done in the amplifier. The echo unit must also have its own "echo send" level control.
